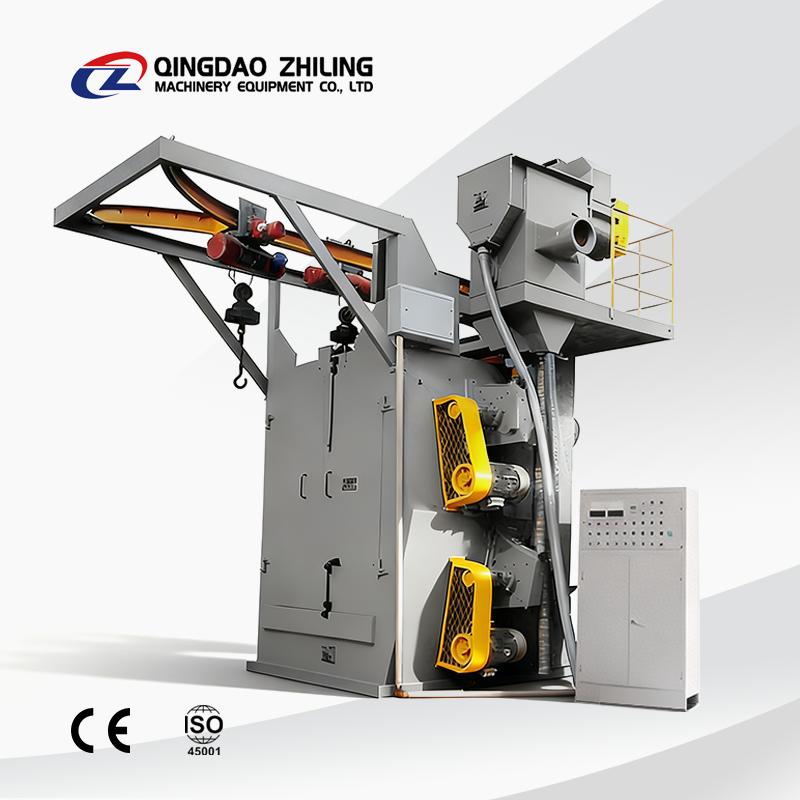

Advantages of hook-type shot blasting machine

Hook-type shot blasting machines occupy an irreplaceable position in the field of industrial surface treatment, and their core advantage stems from their unique design concept. Compared with other models such as tracked and roller conveyor types, the core value of hook-type equipment lies in its ability to provide comprehensive, uniform, and controllable shot blasting treatment for individual workpieces with complex shapes, large sizes, or those susceptible to damage.

Its main features and advantages are reflected in the following aspects:

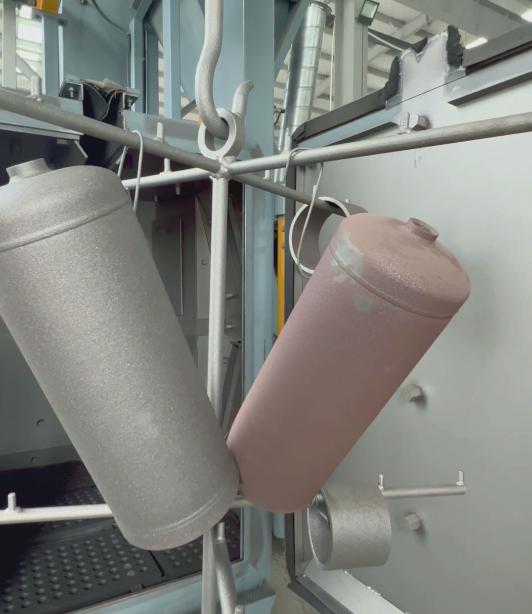

Excellent workpiece adaptability and processing effect

This is the most prominent advantage of hook-type shot blasting machines. The workpiece is vertically suspended in the cleaning chamber by hooks and rotates 360 degrees at a uniform speed during the shot blasting process. This means:

Protecting precision workpieces: Workpieces are processed independently in a suspended state, completely avoiding the risk of damage caused by collisions between workpieces in tracked equipment. This makes it ideal for engine blocks, gearbox housings, precision castings, crankshafts, and large welded structural components.

Flexible production organization methods

The hook-type design provides extremely high operational flexibility and can adapt to diverse production needs:

Multiple configuration options: Single hook, double hook, or multi-hook configurations can be selected according to capacity requirements. The dual-hook type allows for alternating operations, with one hook cleaning indoors and the other loading and unloading outdoors, significantly improving efficiency.

Highly Efficient Space Utilization and Cost Control

Small Footprint: Due to its vertical workpiece processing and transfer, the hook-type shot blasting machine requires less factory floor space compared to roller conveyor systems that require horizontal transport, resulting in a more compact layout.

Relatively Convenient Maintenance: The mature wear-resistant chamber design and modular shot blasting unit structure make daily inspections, replacement of vulnerable parts, and maintenance more convenient, helping to reduce long-term operating maintenance costs.

In summary, the advantage of the hook-type shot blasting machine lies not in its speed of processing large quantities of small, loose parts, but in its "precision, reliability, and flexibility" when processing "critical individual parts." When your workpieces are high-value, structurally complex, cannot withstand impacts, or require extremely high cleaning consistency, the hook-type shot blasting machine is often the most technically and economically viable option.
